STQX-1200S Pulsed Handheld Laser Cleaning Machine

Core Advantages

1. ✅High precision water cooled pulsed laser system

Stable water cooled pulsed laser source, precise energy control. Achieves selective contaminant removal without damaging fine mold textures. Supports long hour continuous operation for workshop production environment.

2. ✅Non contact zero damage cleaning

Controllable heat input. Only vaporize surface contaminants, no grinding, scratching or thermal deformation to base material. Suitable for high value precision molds and alloy components.

3. ✅Lightweight handheld gun & auto focus function

1.8 kg ergonomic cleaning gun, auto focus support, adapts to curved surfaces, complex cavities and intricate mold patterns. Multiple scanning modes adjustable via touch screen panel.

4. ✅Eco friendly & low cost operation

No abrasives, no chemical solvents, no waste liquid. Operating cost mainly comes from electricity power consumption. Reserved dust extraction interface for external dust collector.

5. ✅Dual mode for handheld & robotic integration

Supports standalone handheld operation. Reserved communication interface for connecting robot arm to realize semiautomated or fully automated cleaning workflow.

Application Fields

• Rubber & conveyor belt mold cleaning (remove rubber residue, vulcanized layer)
• Partial maintenance for tire molds
• Injection mold cleaning for release agent, carbon deposit and light rust
• Automotive parts: pre weld cleaning, oxide removal, local paint stripping
• Brake pad laser texturing and surface cleaning
• Precision stainless steel and aluminum alloy oxide layer removal
• Aerospace component surface preparation

Project Case

Conveyor Belt Rubber Mold Cleaning Project

Industry： Rubber product manufacturing

Workpiece： Large size rubber belt mold covered with stubborn vulcanized residue inside complex grooves.

Challenge： Traditional sandblasting abrades delicate mold textures; chemical soaking takes long cycle and generates hazardous waste.

Solution： OPRAY STQX 1200S pulsed laser cleaning machine.

Result：

1. Complete removal of vulcanized layer and rubber residual contaminants;
2. Fine mold cavity patterns fully preserved without substrate erosion;
3. Greatly shorten mold downtime for maintenance;
4. Zero chemical waste, compliant with EU environmental requirements.

Technical Specifications

Standard & Optional Configuration

Standard

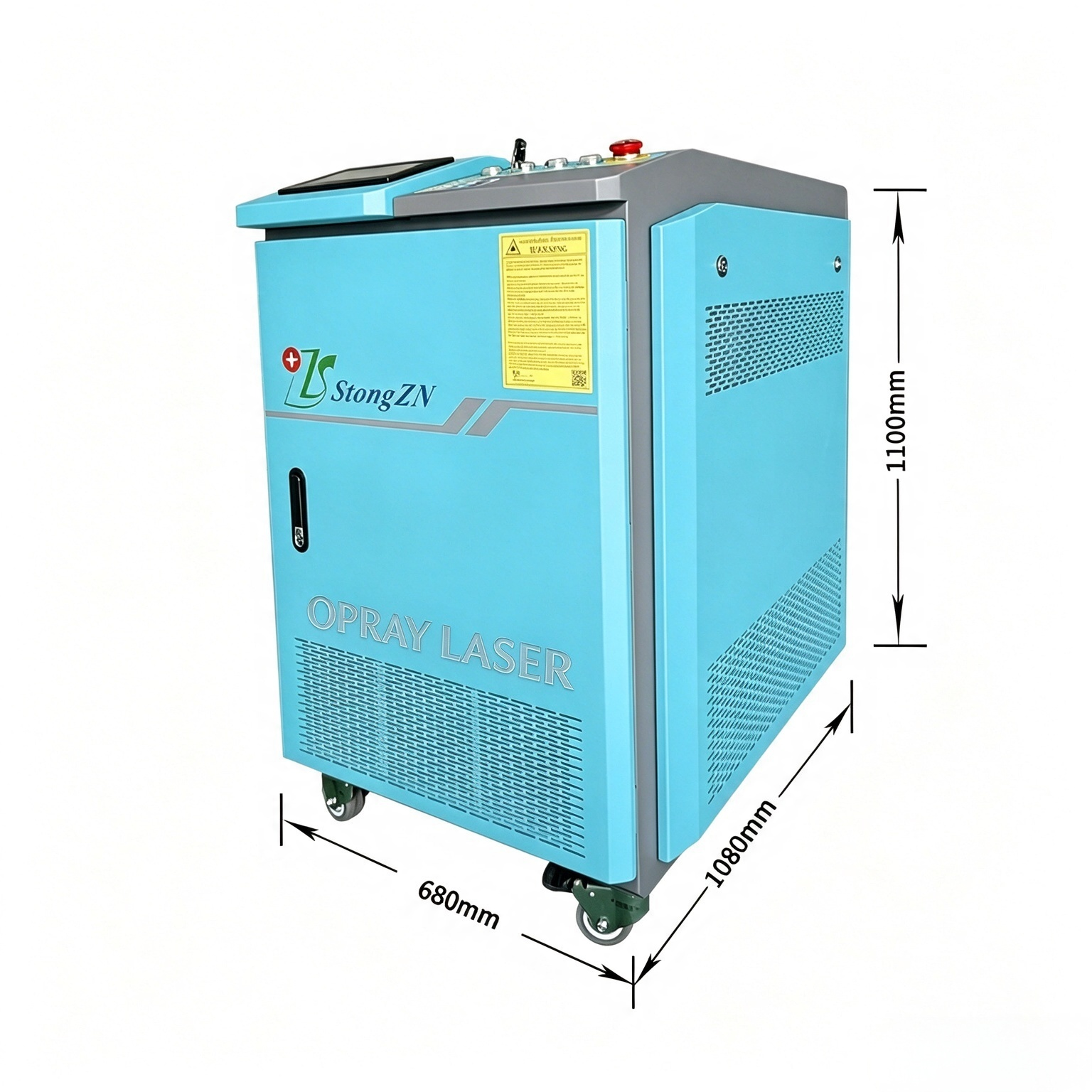

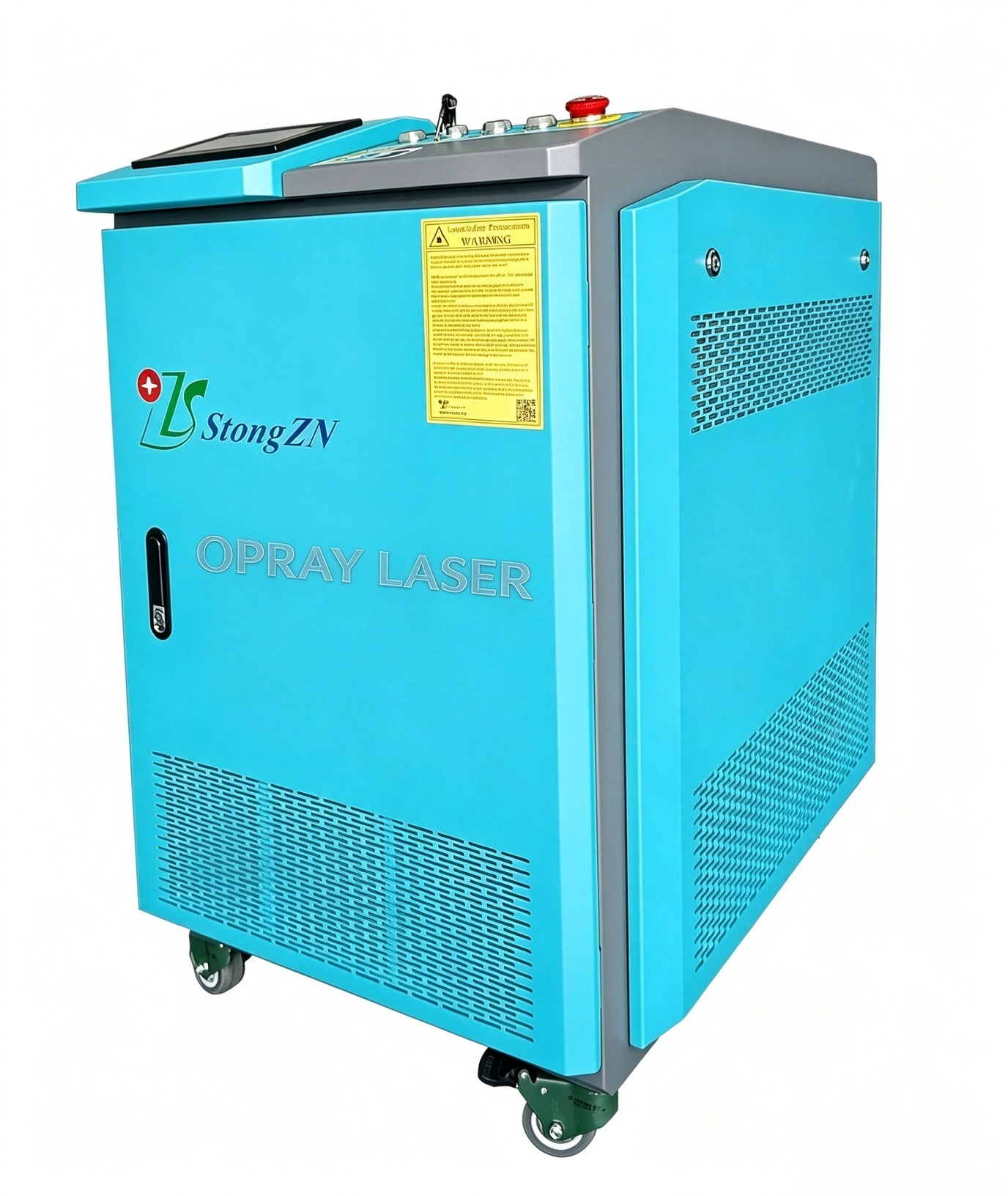

• Laser main unit (water cooled integrated cabinet)
• Lightweight handheld laser cleaning gun
• Optical fiber (8 m)
• 7inch touch screen control panel
• Laser protective goggles
• Power cable

Optional

• Longer optical fiber cable
• Special nozzles for narrow mold grooves
• Industrial mobile dust collector
• Robot arm integration kit
• Rotary workpiece fixture

Delivery & After sales

• Lead time: Standard machine 3650 working days; customized integration solution upon confirmation.
• Packing: Export plywood wooden case.
• Warranty: 1 year warranty for main machine. Laser source under separate warranty, excluding wearable spare parts.
• Service: Remote online training & debugging, English operation manual, global spare parts supply.

FAQ

Q1: Will STQX 1200S damage precision mold surface?

A1: With proper parameter configuration, it only removes surface contaminants without damaging base metal. We provide sample pre test service before order.

Q2: Can this machine connect with robot for automatic cleaning?

A2: Yes, STQX 1200S reserves external control interface for robot integration. Robot integration kit is optional.

Q3: What are the running consumables?

A3: Almost no consumables. Only protective lens is wearable spare part; main operating cost is electricity.
